Gloster Meteor - Сергей В. Иванов

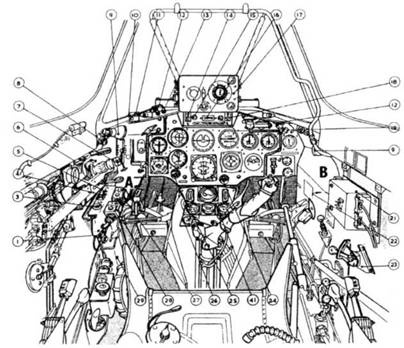

Кабина fr Мк 9

PANEL А

PANEL В

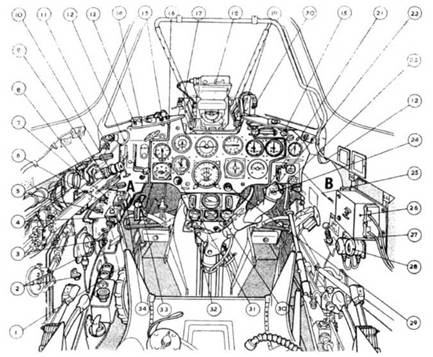

1. Map case 2. Camera footage indicator 3. Trimmer lamp 4. No 2 VHF radio controller 5. 'G Auto' switch 6. ‘G Manual' switch 7. Set selector switch 8. Brake gauge lamp 9. Gyro gunsight range control 10. Press-to-speak switch 11. Ancillary lamps dimmer switch 12. Ultra-violet flood lamps 13. Nose camera switch 14. Nose camera warning lamp 15. Instrument panel lamps 16. Emergency lamps 17. Gyro gunsight control switch 18. Retractable gyro gunsight 19. Gunsight emergency retraction control 20. Gunsight master circuit breaker 21. Gun firing trigger 22. Gun firing safety catch 23. Bomb or rocket firing switch 24. Cine camera switch 25. Emergency lamp switch 26. Nose camera controller 27. Gunsight selector dimmer 28. Gunsight 'rocket/guns' switch 29. Instrument panel lamps dimmer switch 30. Generator failure warning lamp 31. Ultra-violet lamps dimmer switch 32. Clock 33. Bomb or tank manual jettison lever 34. No.1 VHF radio controller 35. Downward identification lamps push button 36. Bomb container jettison push button 37. Bomb selector switches 38. Bomb distributor switch 39. Bomb fusing switches 40. IFF orVoff switch 41. IFF controller 42. IFF distress switch 43. Bomb and rocket firing selector switch 44. Rocket pair/salvo selector switch 45. Downward identification lamps selector switch 46. Downward identification lamps steady switch 47. Pressure head heater switch 48. Camera and pressure head heater switch 49. Recognition lamp switch 50. Navigation lamps switch 51. Landing lamp switch 52. Accumulator isolating switch

Кабина PR MK 10

PANEL A

PANEL В

1. Trimmer lamp 2. N/A 3. G Manual’ switch 4. 'G Auto' switch 5. Radio change-over switch 6. Brake gauge lamp 7. Press-to-speak switch 8. Ancillary lamps dimmer switch 9. Ultra-violet flood lamps 10. Nose camera switch 11. Nose camera warning lamp 12. Instrument panel lamps 13. Emergency lamps 14. Port camera switch 15. Port camera warning lamp 16. Counter switch 17. Rear cameras controller 18. Starboard camera switch 19. Starboard camera warning lamp 20. N/A 21. Nose camera controller 22. Emergency lamp switch 23. Camera shutter jettison 24. Instrument panel lamps dimmer switch 25. Ultra-violet lamps dimmer switch 26. Clock 27. Radio controller (No.1 set) 28. Radio controller (No.2 set) 29. Map case 30. Downward identification lamps push button 31. IFF distress switch 32. IFF controller 33. IFF on/off switch 34. Downward identification lamps selector switch 35. Downward identification lamps steady switch 36. Pressure head heater switch 37. Recognition lamp switch 38. Navigation lamps switch 39. Landing lamp switch 40. Accumulator isolating switch 41 Generator failure warning lamp

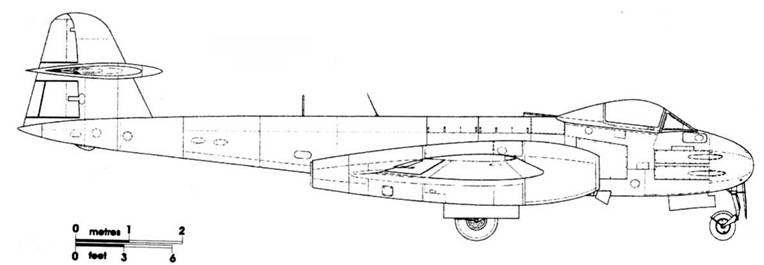

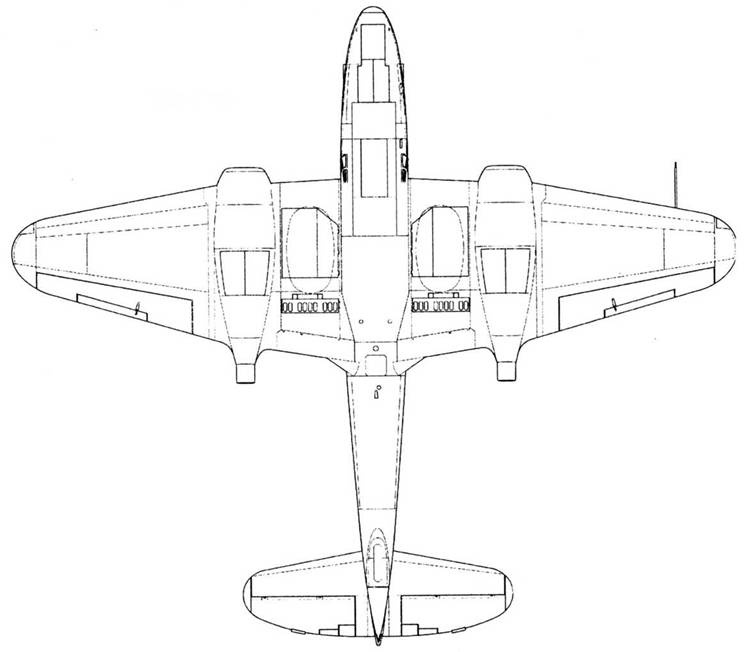

Meteor F Mk 1

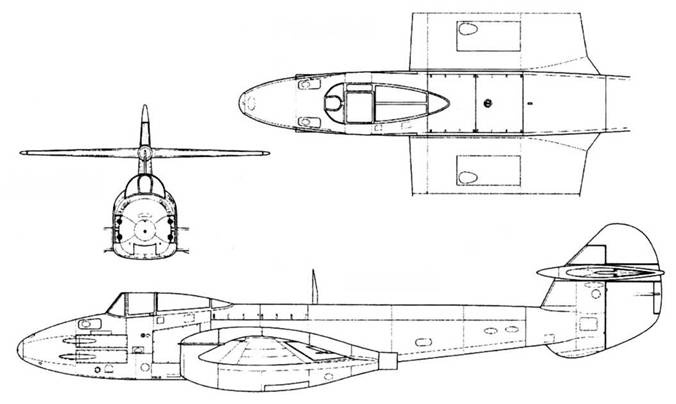

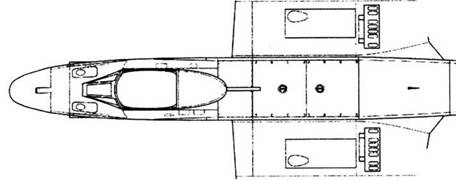

Meteor F Mk 3

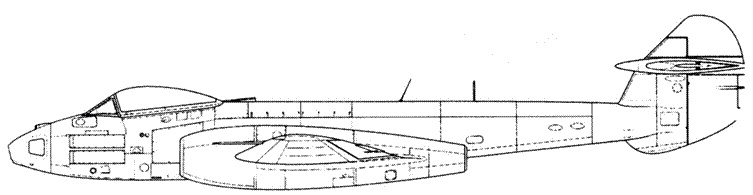

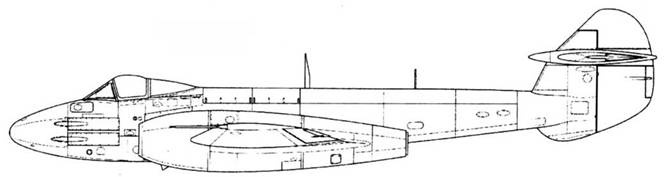

Meteor F Mk 4 Port Profile

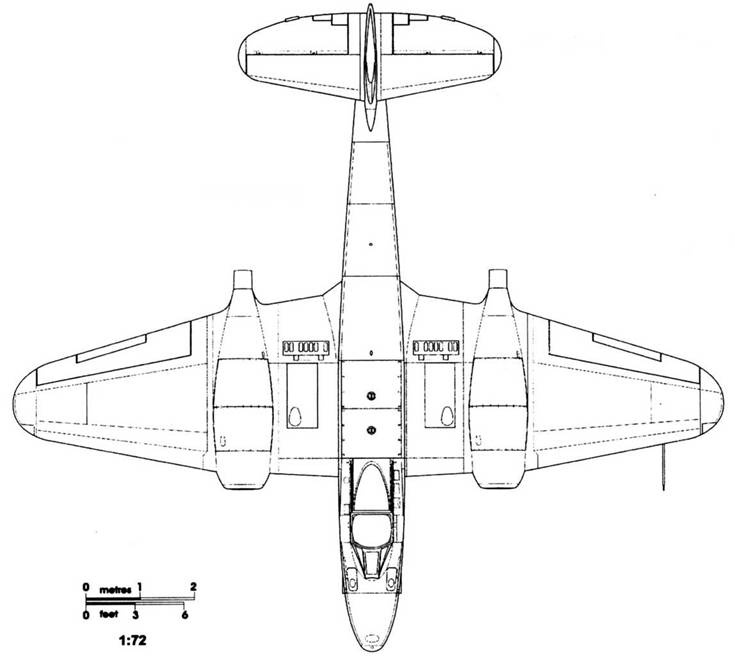

Meteor F Mk 3

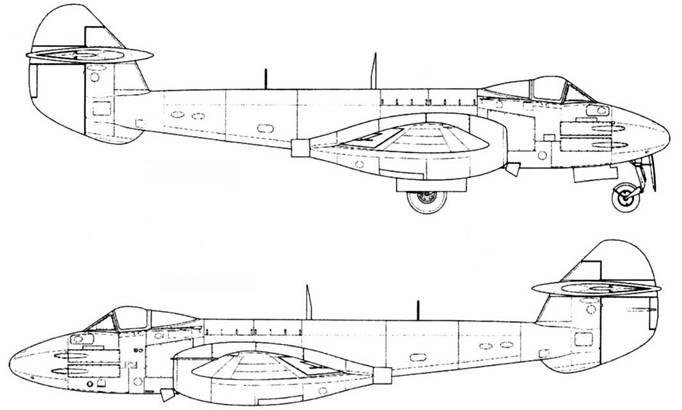

Meteor F Mk 3

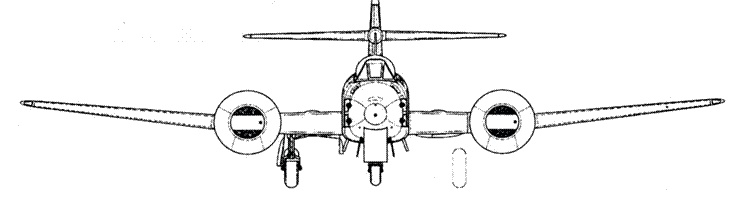

Meteor F Mk 3

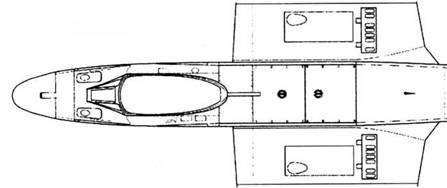

Meteor FR Mk 10 поздний

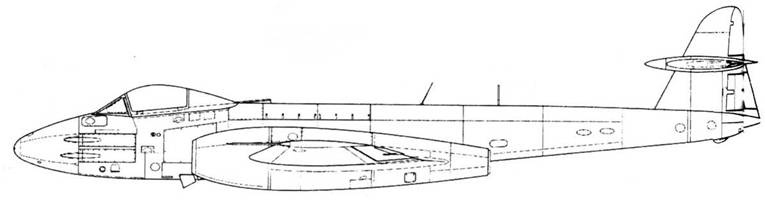

Meteor FR Mk 9 ранний

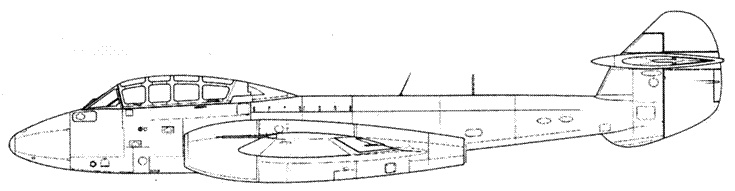

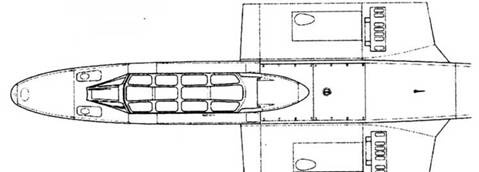

Meteor T Mk 7 поздний

Meteor T Mk 7 поздний

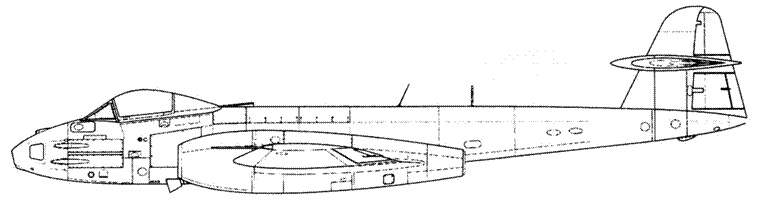

Meteor FR Mk 9 ранний

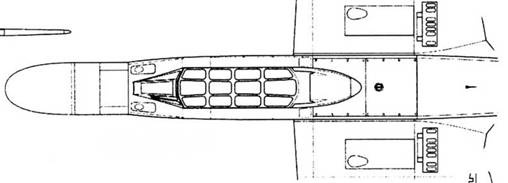

Meteor FR Mk 9 ранний

Meteor FR Mk 10 поздний

Meteor FR Mk 10 поздний

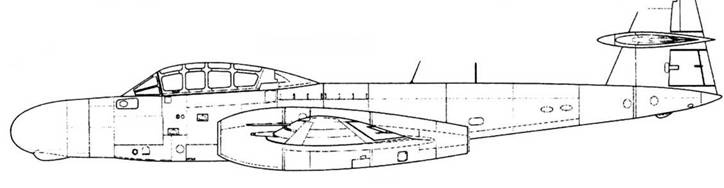

Meteor NF Mk 11

Meteor NF Mk 11

Meteor NF Mk11

Meteor F Mk 8 ранний

Meteor F Mk 8 ранний
